Inverter Ouput inductor Amorphous Block Core, bar core

Minimum Order Quantity :	1 Set	Packaging Details :	Paper box
Delivery Time :	15 days	Payment Terms :	T/T

Place of Origin:	China	Brand Name:	King Magnetics

Detail Information
Material:	Nanocrystalline Amorphous Materials	Shape:	Block, Bar, C Core, Toroidal

Product Description

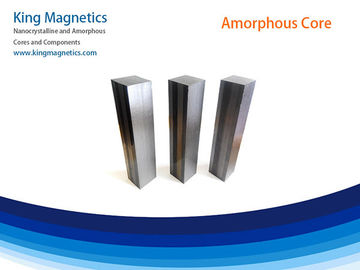

King Magnetics Amorphous Block Core

Amorphous Block core is design for high power usage, easy to install, easy to winding copper wire.High saturation flux density, low core loss. Suitable for solar inverter filter, medium frequency transformer, output inductor, PFC coke.

Features

Material: Fe-based amorphous core

Saturation flux density induction: 1.56T

Curie temperature(℃): 410

Stacking factor: >0.8

Saturation magnetostriction(*10^-6): <30

Resistivity (μΩ.cm): 110

Ribbon thickness: 25μm

Core shape: C core

Applications

>> Solar inverter filter

>> PFC choke

>> Midium frequency transformer

>> Diffrental mode choke

>> Output filter

Detail Please visit: www.kingmagnetics.com
