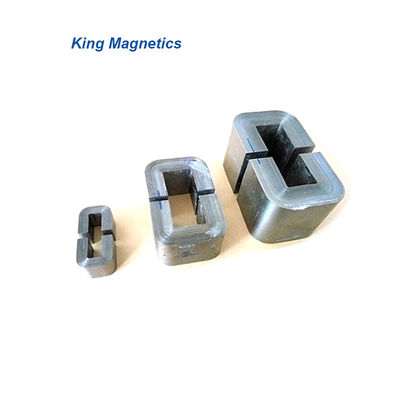

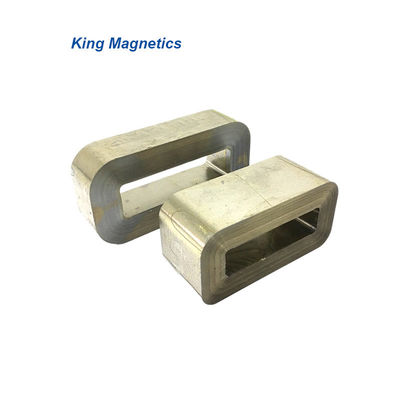

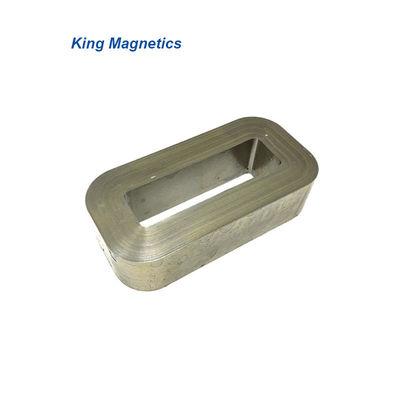

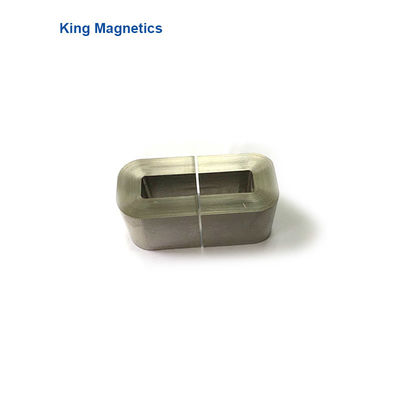

KMAC-20 High performance transformer core c type finemet amorphous core

Name: KMAC-20 High performance transformer core c type finemet amorphous core
Brand: King Magnetics
SKU: KMAC-20
Rating: 4.9 (147 reviews)

Brand Name:	King Magnetics
Model Number:	KMAC-20
MOQ:	5pcs
Price:	-
Delivery Time:	21Work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Zhuhai Guangdong China

Certification:

IOS:9001

Brand Name:

King Magnetics

Part Number:

KMAC-20

Name:

High Performance Transformer Core C Type Finemet Nanocrystalline Core

Material:

Fe-based Amorphous Alloy

Saturation Induction:

1.56T

Usage:

High Frequency Inductor, Transformer

Application:

Solar Inverter, Audio Transformer

Packaging Details:

Carton

Supply Ability:

10000/PCS/Per mouth

Product Description

High performance transformer core c type finemet nanocrystalline core

Product Description

Features

Material: Fe-based amorphous core

Saturation flux density induction: 1.56T

Curie temperature(℃): 410
Stacking factor: >0.8

Saturation magnetostriction(*10^-6): <30

Resistivity (μΩ.cm): 110

Ribbon thickness: 25μm

Core shape: C core

Applications

>> Solar inverter filter

>> PFC choke

>> Midium frequency transformer

>> Diffrental mode choke
>> Output filter
>> Audio transformer

Standard core dimensions

Metglas AMCC C CUT Amorphous Core for High Frequency and Audio Transformer

Part No.	Core dimensions						Effictive cross section	Mean path length	Weight
	A	B	C	D	E	F	AFe	lFe	mFe
	mm	mm	mm	mm	mm	mm	cm2	cm	g
KMAC-20	11	13	50	30	35	72	15.7	2.94	331
KMAC-32	13	15	56	30	41	82	17.9	3.47	447
KMAC-40	13	15	56	35	41	82	17.9	4.05	522
KMAC-50	16	20	70	25	52	102	22.7	3.56	580
KMAC-63	16	20	70	30	52	102	22.7	4.27	696
KMAC-80	16	20	70	40	52	102	22.7	5.70	928
KMAC-100	16	20	70	45	52	102	22.7	6.41	1043
KMAC-125	19	25	83	35	63	121	27.2	5.92	1157
KMAC-160	19	25	83	40	63	121	27.2	6.76	1322
KMAC-200	19	25	83	50	63	121	27.2	8.46	1653
KMAC-250	19	25	90	60	63	128	28.6	10.15	2085
KMAC-320	22	35	85	50	79	129	30.6	9.79	2148
KMAC-400	22	35	85	65	79	129	30.6	12.73	2793
KMAC-500	25	40	85	55	90	135	32.5	12.24	2856
KMAC-630	25	40	85	70	90	135	32.5	15.58	3635
KMAC-800A	25	40	85	85	90	135	32.5	18.91	4414
KMAC-800B	30	40	95	85	100	155	36.1	22.70	5879
KMAC-1000	33	40	105	85	106	171	39.0	24.96	6994

Other specifications are available according to customer’s requirements.

Our Services

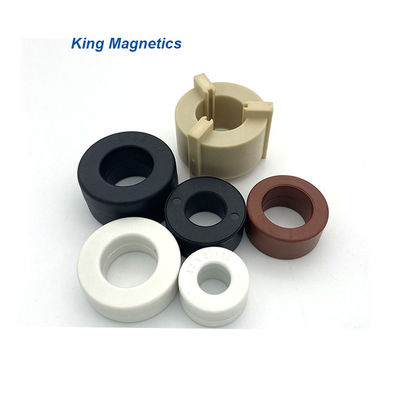

1. Nanocrystalline cores for common mode chokes

- Very high permeability, suitable for EMI common mode chokes.

vacuumschmelze VAC vitroperm nanocrystalline cores for common mode choke

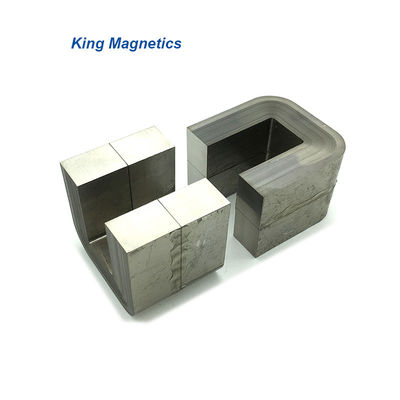

2. Amorphous and nanocrystalline c cores

- High saturation flux density, and low core loss.

- Nanocrystalline c cores are the updated material with ultra high performance.

3. Custom cores and magnetic components

- Oval shape nanocrystalline cores for VFD noise suppresor.

- Amorphous inductors for output DC choke or PFC choke.

- Nanocrystalline toroidal cores for common mode choke.

More information please visit: www.kingmagnetics.com

Zhuhai King Magnetics Technology Co., Ltd.

Address: 1/F, No 5 Pingxi 5 Road
Nanping Science and Technology Zone
Zhuhai, Guangdong, China, 519060

Telephone: +86-756-830-5985;

Cell Phone: +86-158-1980-9198;

Website: www.kingmagnetics.com

Email: core@kingmagnetics.com
