products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Amorphous C core
Created with Pixso. Custom made output filter amorphous c core for high frequency switched mode power supply
Custom made output filter amorphous c core for high frequency switched mode power supply
  • Name
  • Name
  • Name

Custom made output filter amorphous c core for high frequency switched mode power supply

Brand Name: King Magnetics
Model Number: amorphous Cut core
MOQ: 1 set
Price: -
Delivery Time: 15 days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
RoHS Compliance
Packaging Details:
Paper box
Supply Ability:
Depend on need
Product Description

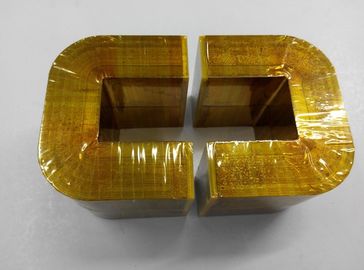

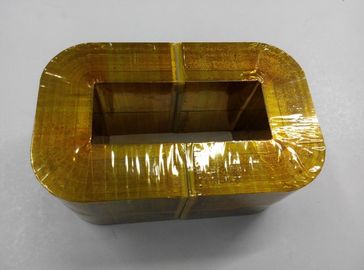

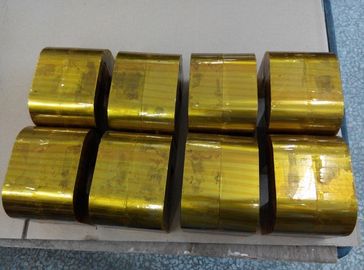

Custom made amorphous C core



We can design and made amorphous and nanocrystalline cores for custom according to custom's drawings or specifications.



Iron based amorphous materials has a lot of virtues:

>> Use good performance Hitachi Metglas 2605SA1 thin Ribbon, about 25 um thickness

>> High saturation flux dentisy Bs 1.56Telsa

>> Low coercivity Hc, High efficiency, Low temperature rise

>> Low core loss Pc 2.0W/Kg Max @ 16KHz, 37mT

>> Easy to make a big core, tranditional magnetic material like ferrite sendust or MPP can't possible to make a big size.



Suitable for large switched mode power supply as high current output filter inductor with hign inductance:

>> Inverter melting machine

>> Solar Inverter

>> X-ray equipment

>> Laser power supply



More information please visti: www.kingmagnetics.com
