Amorphous and Nanocrystalline C Core for filter Inductor for Solar panel Inverter AC-32

Packaging Details : Paper box Delivery Time : 15 days
Payment Terms : T/T
Place of Origin: China Brand Name: King Magnetics
Model Number: AC-32

Detail Information

High Light:

amorphous C core

,

nanocrystalline core

,

Inductor for soloar Inverter

Product Description

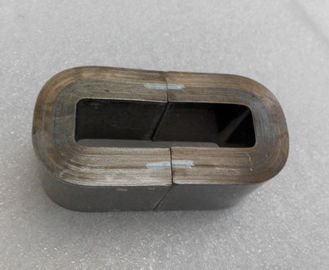

AC-32 amorphous C core

Features:

>>high saturation flux density,
>>high permeability
>>low loss
>> 25 micro meter amorphous ribbon Metglas 2605SA1 tape wound core

Applications:

>>high frequency high power inverter
>>SMPS as inductor
>>high frequency transformer core
>> solar inverter
>> different mode choke
>> PFC Chokes

Detail Please visit:  www.kingmagnetics.com


We are advanced producer of amorphous and nanocrystalline cores and components.


Amorphous and Nanocrystalline C Core for filter Inductor for Solar panel Inverter AC-32 0



Parrt No.

Core Dimensions

 (mm)

Mean path length

 (cm)

Effective cross section

(cm2)

Window area

(cm2)

Area product

(cm4)

Mass

(g)

A ± B C D ± E + F + Lm Ae Wa Ap Wt
AC-10 11 0.8 13 40 20 0.5 35 1 62 2 14.05 1.8 5.2 9.4 200
AC-20 11 0.8 13 50 30 0.5 35 1 72 2 16.05 2.71 6.5 17.6 340
AC-25 13 0.8 15 56 25 0.5 41 1 82 2 18.28 2.67 8.4 22.4 380
AC-32 13 0.8 15 56 30 0.5 41 1 82 2 18.28 3.2 8.4 26.9 460
AC-40 13 0.8 15 56 35 0.5 41 1 82 2 18.28 3.73 8.4 31.3 530
AC-50 16 1 20 70 25 0.5 52 1 102 2 23.02 3.28 14 45.9 590
AC-63 16 1 20 70 30 0.5 52 1 102 3 23.02 3.94 14 55.1 710
AC-80 16 1 20 70 40 1 52 1 102 3 23.02 5.25 14 73.5 950
AC-320 22 1 35 85 50 1 79 1 129 4 32.5 9 29.8 267.8 2170
AC-800B 30 1 40 95 85 1.5 100 1 155 4 39.3 21 38 798 5972
AC-1000 33 1 40 105 85 1.5 106 1 171 4 42.7 23 42 966 7060
