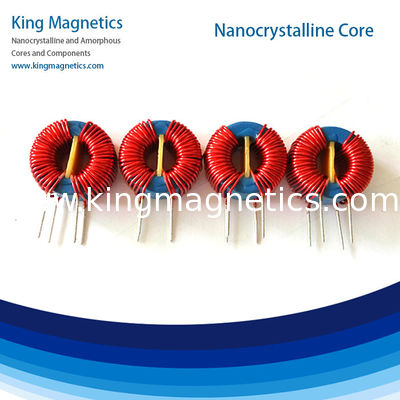

Large power SMPS pfc choke ac choke reactor
Contact Person : Wang
Phone Number : +86-158-1980-9198
| Minimum Order Quantity : | 10 pcs | Packaging Details : | Paper box |
|---|---|---|---|
| Delivery Time : | 15 days | Payment Terms : | T/T |
| Supply Ability : | 50000 |
| Place of Origin: | China | Brand Name: | King Magnetics |
|---|---|---|---|
| Certification: | RoHS | Model Number: | Audio Toroidal Transformer |
|
Detail Information |
|||
| Name: | Audio Toroidal Transformer | Model: | 250VA |
|---|---|---|---|
| Application: | Audio Transformer, Instrument Transformer | ||
Product Description
Material: Fe-based Nanocrystalline core
Saturation flux density induction: 1.25T
Permeability @ 10KHz: > 20000
Curie temperature(℃): 560
Stacking factor: 0.78
Saturation magnetostriction(*10^-6): <2
Resistivity (μΩ.cm): 90
Ribbon thickness: 25μm
Core shapes: Troidal core
High saturation flux density - you can reduce volume of transformers vs tranditional Ferrite
High permeability - improve efficiency,lower exciting power and reduce copper loss
Low coercivity and Low core loss - low temperature rise
Excellent thermal stability - working temperature of -40 - 130℃
>> Inverter welding machines
>> Electrolytic plating power supplies
>> High Power Laser power supplies
>> Communication, high-speed railway power supplies
>> High frequency heating systems
>> High frequency and high power switched mode power supply
| Properties | Nanophous cores | Ferrite cores |
| Saturation Flux density(T) | 1.25 | 0.5 |
| Remanence (T) (20KHz) | <0.2 | 0.2 |
| Core loss (20KHz/0.2T) (W/Kg) | <4 | 7.5 |
| Core loss (20KHz/0.5T) (W/Kg) | <40 | can not use |
| Core loss (50KHz/0.3T) (W/Kg) | <50 | can not use |
| Permeability (20KHz) | >20,000 | 2000 |
| Coercivity (A/m) | <2.0 | 6 |
| Saturation magnetostriction(*10^-6) | <2 | 4 |
| Resistivity (μΩ.cm) | 90 | 10^6 |
| Curie temperature(℃) | 560 | <200 |
| Stacking factor | >0.75 | n/a |
| Part No. | Core dimensions | Case dimensions | Effictive cross section |
Mean path length |
Weight | Power @ 20KHz |
||||
| od | id | h | OD | ID | H | AFe | lFe | mFe | P | |
| mm | mm | mm | mm | mm | mm | cm2 | cm | g | KW | |
| KMN644020T | 64 | 40 | 20 | 68.2 | 37 | 23.5 | 1.87 | 16.3 | 222 | 1-3 |
| KMN805025T | 80 | 50 | 25 | 83.5 | 47.2 | 28.8 | 2.93 | 20.4 | 433 | 3-6 |
| KMN1006020T | 100 | 60 | 20 | 106 | 55 | 25 | 3.12 | 25.1 | 568 | 5-7 |
| KMN1207020T | 120 | 70 | 20 | 125 | 65 | 25 | 3.90 | 29.8 | 843 | 6-10 |
| KMN1207030T | 120 | 70 | 30 | 125 | 65 | 36 | 5.85 | 2.98 | 1265 | 10-14 |
| KMN1308040T | 130 | 80 | 40 | 136 | 75 | 46 | 7.80 | 33.0 | 1864 | 16-20 |
| KMN1308050T | 130 | 80 | 50 | 136 | 75 | 56 | 9.75 | 33.0 | 2331 | 20-25 |
Other specifications are available according to customer’s requirements.
We make cores to customer's drawings. If you need custom cores, please send drawing to us.
Full amorphous and nanocrystalline cores catalog download:
