High Unbalance Current Frequency Converter Motor use Nanocrystalline Core

Place of Origin:	China	Brand Name:	King Magnetics
Certification:	RoHS, UL94-V0(Plastic Case)	Model Number:	N52-36-25

Product Description

High permeability ui 80000 Nanocrystalline Core updated product

for EMC Filter Common Mode Choke

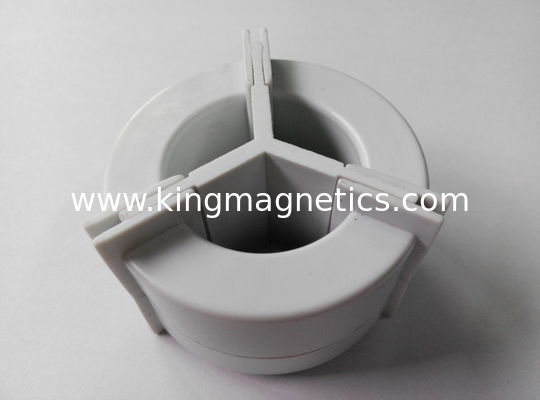

3- Phase disign, with seperated board.

Bare core dimensions: OD: 52mm ID: 36mm HT: 25mm

Finished core dimensions (approximately): OD: 55.6mm ID: 32.6mm HT:28.6mm

Color: White or other (custom design)

AL Value @ 10KHz, 0.25V : 75uH Min

Or you can specified other AL value for other frequency condition.

Long time Working temperature: -40℃ - 120℃

RoHS Compliance, UL94-V0 for plastic case.

It is very suitable for EMI filter common mode choke for replace ferrite core or tranditional core.

Zhuhai King Magnetics Technology Co., Ltd. an ISO9001:2015 certificated company, which is a proffesional designer and manufacturer of high quality nanocrystalline cores, amorphous cores and magnetic components.
