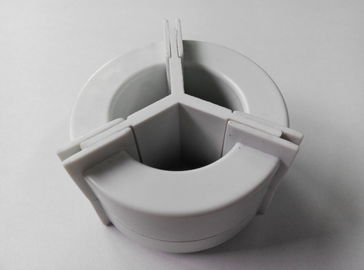

EMI Filter use, High Permeability RoHS compliance 3-Phase Nanocrystalline Core
  • Name

EMI Filter use, High Permeability RoHS compliance 3-Phase Nanocrystalline Core

Brand Name: King Magnetics
Model Number: T52-36-25
MOQ: 500 pcs
Price: -
Delivery Time: 15 days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
RoHS, UL94-V0(Plastic Case)
Packaging Details:
Paper box
Supply Ability:
60000 pcs
Product Description

High permeability ui 80000 Nanocrystalline Core updated product

for EMC Filter Common Mode Choke



3- Phase disign, with seperated board.



Bare core dimensions: OD: 52mm   ID: 36mm   HT: 25mm

Finished core dimensions (approximately): OD: 55.6mm ID: 32.6mm HT:28.6mm



Color: White or other (custom design)



AL Value @ 10KHz, 0.25V : 75uH Min

Or you can specified other AL value for other frequency condition.



Long time Working temperature: -40℃ - 120℃



RoHS Compliance, UL94-V0 for plastic case.



It is very suitable for EMI filter common mode choke for replace ferrite core or tranditional core.
