Initial permeability ui 60000 Min, 3-Phase Nanocrystalline core for common mode choke

Minimum Order Quantity : 500 pcs Price : -
Packaging Details : Paper box Delivery Time : 15 days
Payment Terms : T/T Supply Ability : 60000 pcs
Place of Origin: China Brand Name: King Magnetics
Certification: RoHS, UL94-V0(Plastic Case) Model Number: T65-40-30

Product Description

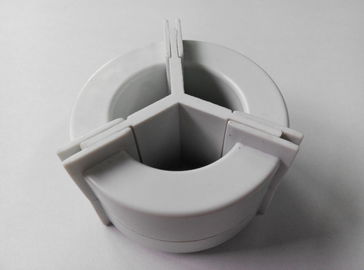

High inductance Nanocrystalline EMC Filter Common Mode Choke core T65-40-30

3- Phase disign, with seperated board, Nanocrystalline core

(sometimes they call amorphous core)




High permeability  Nanocrystalline Core ui 60000 Min @ 10Khz

Used best nanocrystalline ultra thin ribbon of 25um

Best high frequency characterics


for EMI Filter and Common Mode Choke


Bare core dimensions: OD: 65mm   ID: 40mm   HT: 30mm

Finished core dimensions (approximately): OD: 55.6mm ID: 32.6mm HT:28.6mm


AL Value @ 10KHz, 0.25V : 115uH Min

you can also specified other AL value, we can custom made.


Working temperature: -40℃ - 120℃


RoHS Compliance, UL94-V0 for plastic case.


It is the best core for EMI solusions.
