Nanocrystalline core for Leakage current protector use, replacing Permalloy

Packaging Details : Paper box Delivery Time : 15 days
Payment Terms : T/T
Place of Origin: China Brand Name: King Magnetics
Model Number: N2510

Product Description

N1703 suitable for ALCI current transformer.



Core dimensions: 17*13*3.2mm

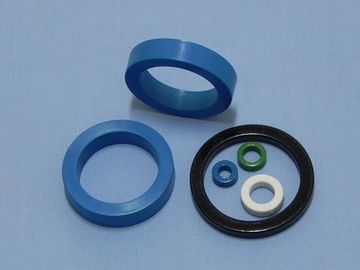

High permeability  nanocrystalline core for current transformer. Cased type and Epoxy coating type are available.



Nanocrystalline cores for current transformers have similar initial permeability and temperature stability compared with permalloy, with small size, light weight and less expensive. Widely used in current measurement, digital watt-hour meter and Leakage protection.



Fe-based nanocrystalline core features very high permeability, high saturation flux density, low loss makes common mode choke has large inductance with only a few turns, low copper loss and small size.


We are professional producer of amorphous core and nanocrystalline core.

Part No. Core dimension Case dimension Eff. cross area Mean path length Windows area
(mm) (mm) (cm2) (cm) (cm2)
od id h OD ID H Ae Lm Wa
N1302 13 10 2.5 15 8.6 4.2 0.029 3.61 0.58
N1403 14 10 3.2 16.4 8.8 5.6 0.05 3.77 0.61
N1703 17 13 3.2 19.5 10.4 5.4 0.05 4.71 0.85
N1907 19 14 6.5 21.3 12.5 8.6 0.127 5.18 1.23
N2110 21 15 10 23.6 12.8 12.6 0.234 5.65 1.29
N2410 24 18 10 26.9 16 12.8 0.234 6.59 2.01
N2510 25 20 10 27.7 18 12.9 0.195 7.07 2.54
N2605 26 20 4.5 28.7 18 7 0.105 7.22 2.54
