nanocrystalline c type cut core for output inductor, 20KHz high frequency transformer, electrical vehicle charger

Nanocrystalline material is the most high permeability magnetic materials in the world. Low core loss, green and low carbon emission.


Features:

Fe-based nanocrystalline material with composition of mostly Fe with Cu,Nb,Si,B, which first by rapid quenching technology to form amorphous ribbon, then by crystalline heat treatment to gain fine grains with nano scale. Through this revolutionary process, we can get superior magnetic properties with high saturation flux density, high initial permeability, low coercivity, low core loss. Nanocrystalline material is an environmental protection, green, low carbon,high efficiency new magnetic material.

Applications:

Fe-based nanocrystalline material can be applied to cores for common mode chokes, high frequency transformers, current transformers, driver transformers, network transformers, bead cores, magnetic amplifiers, filter inductors, reactors, PFC chokes in various electrical and electronic area, now have been widely used in switched mode power supply, household electrical appliance, industrial electrical equipment, communication power supply, network power supply, solar energy equipment, wind power generator, IGBT inverter power supply, laser power supply and medical equipment power supply.

Characteristics:

> High permeability -- increasing inductance and reducing winding turns
> High saturation induction -- minimizing size of component
> High frequency -- suitable used in frequency range from 50Hz up to 100KHz
> High curie temperature -- higher working temperature, continuous working at up to 120℃
> Low coercivity -- increasing the efficiency and reducing hysteresis loss
> Low core loss -- reducing energy consumed and minimizing temperature rise
> Low magnetostriction -- low audible noise compared to traditional magnetic materials
> Excellent thermal stability -- extremely small deviations from -20℃ to 120℃
> Low cost -- good choice to replace traditional materials like permalloy

Magnetic Properties:

> Saturation induction Bs -- 1.25 T
> Saturation magnetostriction λs -- 2×10^-6
> Curie temperature Tc -- 560 ℃
> Crystallization temperature Tx -- 510℃
> Ribbon thickness -- 25 μm
> Density d -- 7.25 g/cm³
> Resistivity ρ -- 115 μΩ.cm
> Vicker’s Hardness Hv -- 880 kg/mm²

Magnetic Properties Comparison between Amorphous and Nanocrystalline Materials and Traditional Soft Magnetic Materials:

Applications of Amorphous and Nanocrystalline Cores:

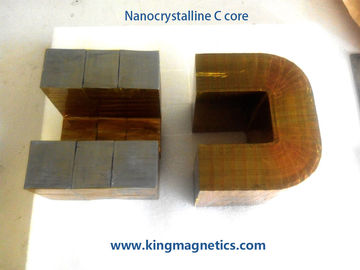

Nanocrystalline C cores are available now. Upgrade product of amorphous c core, with high saturation flux density, low coercivity, low core loss, very low noise, higher frequency up to 20KHz, suitable for main power transformer, output inductor, boost PFC choke coil. Can replace ferrite core. Dimensions can be custom-made.


Features

Material: Fe-based nanocrystalline
Saturation flux density induction: 1.25T
Curie temperature(℃): 560
Stacking factor: >0.75
Saturation magnetostriction(*10^-6): <2
Resistivity (μΩ.cm): 130
Ribbon thickness: 25μm
Core shape: C type cut core



Applications

>> High frequency transformer (frequency recommend 20-30KHz)
>> Solar inverter filter
>> PFC choke
>> Differential mode choke
>> Output filter
>> Audio equipment


Standard core dimensions

Other specifications are available according to customer’s requirements.
