Nano-crystalline core for common mode choke inductor from King Magnetics Technology

Name: Nano-crystalline core for common mode choke inductor from King Magnetics Technology
Brand: King Magnetics
SKU: N28-17-8
Rating: 4.6 (132 reviews)

Brand Name:	King Magnetics
Model Number:	N28-17-8
MOQ:	500 pcs
Price:	-
Delivery Time:	15 days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

Paper box

Supply Ability:

60000 pcs

Product Description

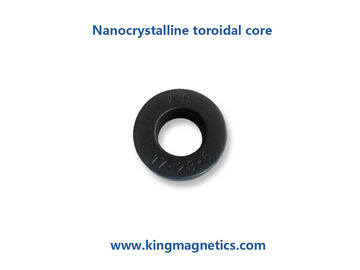

Nanocrystalline toroidal core for common mode choke

King Magnetics is a leading company producing amorphous and nanocrystalline cores. Our cores are high quality, high performance and high reliable, and can meet internation specifications like Hitachi, VAC.

Nanocrystalline cores have very high permeability, as 5 times as ferrite, suitable for EMC common mode choke, EMI filter.

Applications: SMPS, Solar inverter, Electric automobile, Wind power generator, VFD inverter, etc.

Specification for N28-17-8

Core dimensions: 28*17*8mm

Case dimensions: 30.5*15*10mm

Magnetic performance:

AL 45uH Min @ 10KHz, 0.25V

AL 7.0uH Min @ 100Khz, 0.25V

King Magnetics Nanocrystalline toroidal core for common mode choke.
