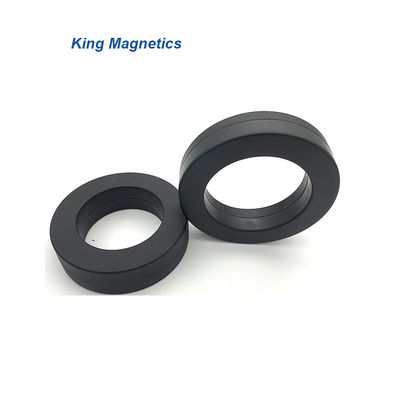

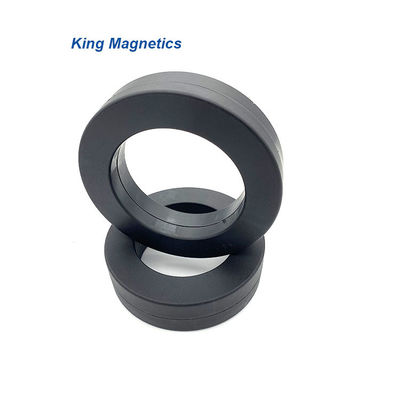

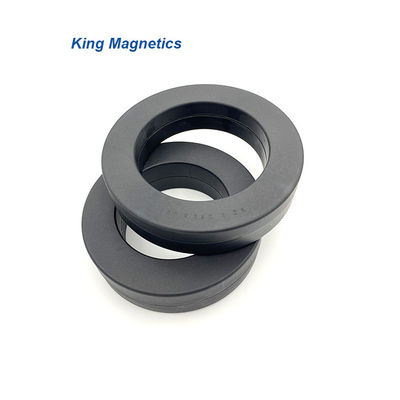

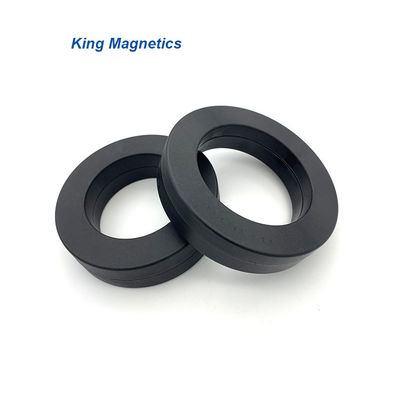

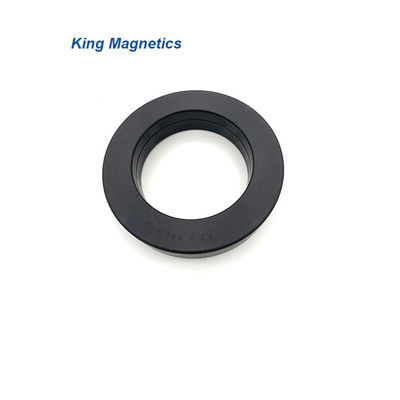

KMN14010025 High AL value common mode inductor nanocrystalline core

Name: KMN14010025 High AL value common mode inductor nanocrystalline core
Brand: King Magnetics
SKU: KMN14010025
Rating: 5 (153 reviews)

Brand Name:	King Magnetics
Model Number:	KMN14010025
MOQ:	1ps
Price:	-
Delivery Time:	21 Work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Zhuhai Guangdong China

Certification:

IOS:9001

Brand:

King Magnetics

Material:

Nanocrystalline Alloy

Shape:

Toroidal

Usage:

Common Mode Choke Coil

Core Dimension:

140*100*25mm

Case Dimension:

145*95*30mm

Shipping Way:

UPS Etc

Trade Term:

EXW

Place:

Zhuhai

Packaging Details:

Carton

Supply Ability:

10000/PCS/Per mouth

Product Description

High AL value common mode inductor nanocrystalline core

Product Description

KMN261610 nano core.jpg

Features

Material: Fe-based Nanocrystalline core
Saturation flux density induction: 1.25T
Permeability @ 10KHz: > 50000
Permeability @ 100KHz: >10500
Curie temperature(℃): 560
Stacking factor: 0.78
Saturation magnetostriction(*10^-6): <2
Resistivity (μΩ.cm): 115
Ribbon thickness: 25μm
Core shapes: Troidal core

Applications

>> EMC Filter
>> Switched mode power supply
>> Computer power supply
>> Communication and network power supply
>> Laser and X-ray power supply
>> Welding equipment and Electrical plating power supply
>> Solar energy equipment and Wind power generator
>> Household electrical appliance
>> Uninterruptable power supply (UPS)
>> Frequency converter
>> Inducted heating equipment
>> high-speed railway power supplies

>> VFD Inverter Drive Motor Systems

Standard Cores

Part No.	Core dimensions			Case dimensions			Effictive cross section	Mean path length	Weight	AL Minimum Value
	od	id	h	OD	ID	H	AFe	lFe	mFe	10kHz	100kHz
	mm	mm	mm	mm	mm	mm	cm2	cm	g	μH	μH
KMN986545	9.8	6.5	4.5	11.3	5	6.1	0.06	2.6	1.1	14.2	3.0
KMN120805	12	8	5	14.4	6.5	7.0	0.08	3.1	1.6	15.6	3.7
KMN161006	16	10	6	17.9	8.1	8.1	0.14	4.1	4.16	25.9	5.2
KMN161008	16	10	8	17.8	8.4	9.9	0.19	4.1	5.5	34.6	6.9
KMN191510	19	15	10	21.2	13.5	12.3	0.16	5.3	6.0	22.0	4.4
KMN201208	20	12	8	21.7	10.8	9.9	0.25	5.0	9.1	37.4	7.5
KMN201210	20	12	10	22.6	10.5	12.5	0.31	5.0	11.4	46.8	9.4
KMN211308E*	21.3	13.6	8	22	13	8.8	0.24	5.5	9.5	33.0	6.6
KMN252010	25	20	10	28	17.2	13.2	0.20	7.1	10	20.8	4.2
KMN251610	25	26	10	28	14.0	13.1	0.35	6.4	16.4	41.1	8.2
KMN261610	25.5	16	10	28.3	13.9	13	0.39	6.6	18.6	44.6	8.9
KMN302010	30	20	10	33.2	17.8	13.3	0.39	7.9	22	37.4	7.5
KMN302015	30	20	15	33.6	17.8	17.8	0.59	7.9	33	56.2	11.2
KMN322010	32	20	10	34.4	18.1	13	0.47	8.2	28	43.2	8.6
KMN322015	32	20	15	34.6	17.9	18.2	0.70	8.2	42	64.8	13.0
KMN402515	40	25	15	44.4	22	18.8	0.88	10.2	65	64.8	13.0
KMN403215	40	32	15	44.9	28.8	18.8	0.47	11.3	38	31.2	6.2
KMN503220	50	32	20	53.8	28.5	24	1.40	12.9	131	68.5	16.4
KMN504020	50	40	20	53.6	37.1	23	0.78	14.1	80	34.7	8.3
KMN644025	64	40	25	67.4	37	29.3	2.34	16.3	277	90.0	21.6
KMN805020	80	50	20	83.8	46.6	25.0	2.34	20.4	346	72.0	17.3
KMN805025	80	50	25	83.5	47.2	28.8	2.93	20.4	433	90.0	21.6
KMN1008020	100	80	20	105	75	25	1.56	28.3	320	34.7	8.3
KMN1027625	102	76	25	107	71	30	2.54	27.9	514	57.0	13.7
KMN1309030	130	90	30	135	85	35	4.68	34.5	1172	85.1	20.4
KMN16013025	160	130	25	165	125	30	2.93	45.5	966	40.3	9.7
KMN17012025	170	120	25	175	115	30	4.88	45.5	1609	67.2	16.1
KMN20016030	200	160	30	207	153	37	4.50	56.5	1918	41.6	12.5

These cores are our standard products, we can also design and produce high performance cores according to customer’s requirements, including sizes, inductance and applications. We can help customers to select the best performance cores.

* Epoxy coated.

Our Services

1. Nanocrystalline cores for common mode chokes

- Very high permeability, suitable for EMI common mode chokes.

vacuumschmelze VAC vitroperm nanocrystalline cores for common mode choke

2. Amorphous and nanocrystalline c cores

- High saturation flux density, and low core loss.

- Nanocrystalline c cores are the updated material with ultra high performance.

3. Custom cores and magnetic components

- Oval shape nanocrystalline cores for VFD noise suppresor.

- Amorphous inductors for output DC choke or PFC choke.

- Nanocrystalline toroidal cores for common mode choke.
