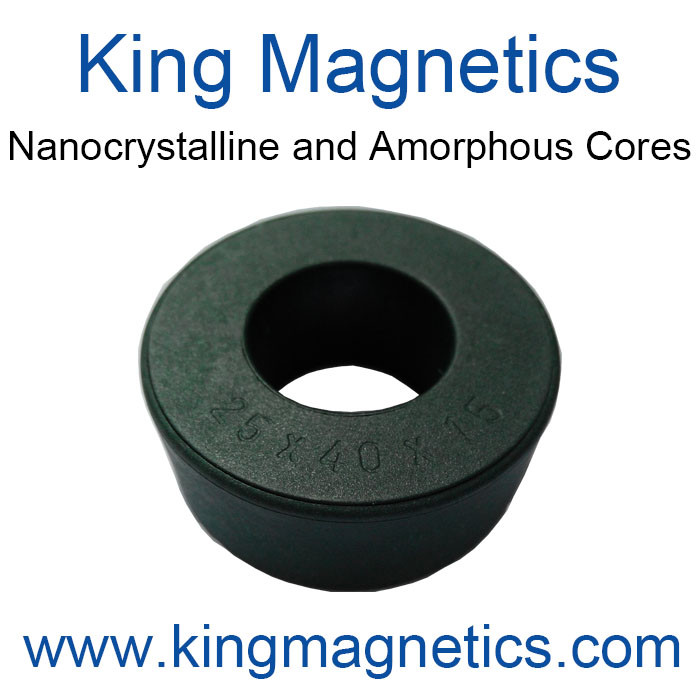

Nanocrystalline Core N40x25x15

Brand Name: King Magnetics
Model Number: N40x25x15
MOQ: 500 pcs
Price: -
Delivery Time: 15 days
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
RoHS, UL94-V0(Plastic Case)
Packaging Details:
Paper box
Supply Ability:
30000 pcs
Product Description
Model: N40x25x15 Nanocrystalline Core

Application: Common mode choke

Core dimensions: 40x25x15 mm

Case dimensions: 44.4x22.2x18.8 mm

AL 54.0uH Min @ 10KHz 0.25V;

AL 11.3uH Min @ 100KHz, 0.25V.


Nanocrystalline Toroidal Cores for Common Mode Chokes

We use the best nanocrystalline ribbons to product the cores.



features:

High permeability means High indutance,

High saturation flux density

Low core loss

Very good temperature characteristic.

easy help you treat EMI problems.



Green product, low carbon and RoHS compliance.


We are professional producer of amorphous core and nanocrystalline core.

Custom made cores are available.
