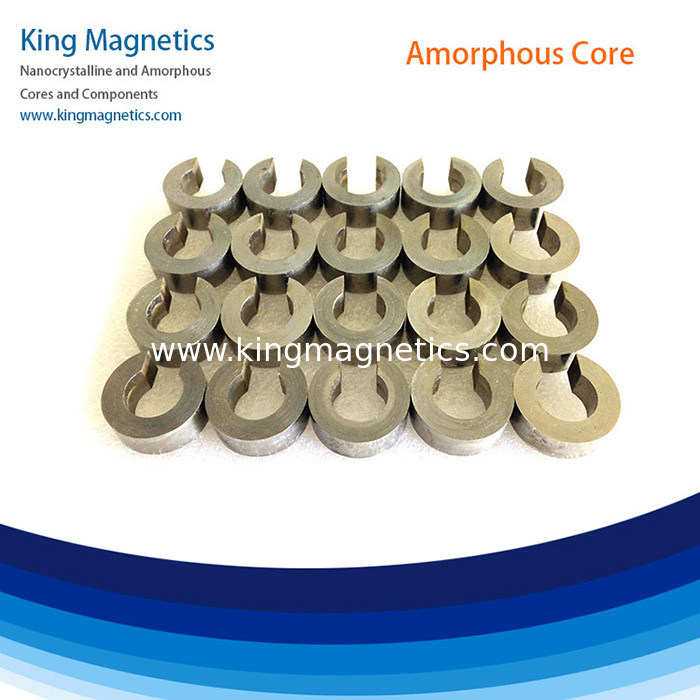

Hall-sensor nano crystalline strip wound amorphous toroid core with gap

Hall-sensor nano crystalline strip wound amorphous toroid core with gap

    • Hall-sensor nano crystalline strip wound amorphous toroid core with gap
    • Hall-sensor nano crystalline strip wound amorphous toroid core with gap
    • Hall-sensor nano crystalline strip wound amorphous toroid core with gap
    • Hall-sensor nano crystalline strip wound amorphous toroid core with gap
  • Hall-sensor nano crystalline strip wound amorphous toroid core with gap

    Product Details:

    Place of Origin: China
    Brand Name: King Magnetics
    Certification: RoHS
    Model Number: Hall-sensor nano crystalline strip wound amorphous toroid core with gap

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Packaging Details: Paper box
    Delivery Time: 15 days
    Payment Terms: T/T
    Supply Ability: 50000
    Material: Amorphous and Nanocrystalline Materials
    Contact Now
    Detailed Product Description
    Name: Hall-sensor Nano Crystalline Strip Wound Amorphous Toroid Core With Gap Model: 1k107, Finemet, Vitroperm 500 F, Nanoperm, 2605sa1
    Application: Customize Dimensions Amorphous Bar Core

    Amorphous C Corenanocrystalline common mode choke coreNanocrystalline Oval Coreamorphous toroidal and cut coreamorphous inductor, pfc choke corepower line choke coils and transformers high frequency ferrite nanocrystalline cores

    PFC choke amorphous metglas c cores amcc-100


    Features



    Material: Fe-based amorphous core

    Saturation flux density induction: 1.56T

    Curie temperature(℃): 410
    Stacking factor: >0.8

    Saturation magnetostriction(*10^-6): <30

    Resistivity (μΩ.cm): 110

    Ribbon thickness: 25μm

    Core shape: C core



    Applications



    >> Solar inverter filter

    >> PFC choke

    >> Midium frequency transformer

    >> Diffrental mode choke
    >> Output filter
    >> Audio transformer



    Standard core dimensions







    multi-cut amorphous c core







    Part No. Core dimensions Effictive
    cross
    section
    Mean
    path
    length
    Weight
      A B C D E F AFe lFe mFe
      mm mm mm mm mm mm cm2 cm g
    KMAC-20 11 13 50 30 35 72 15.7 2.94 331
    KMAC-32 13 15 56 30 41 82 17.9 3.47 447
    KMAC-40 13 15 56 35 41 82 17.9 4.05 522
    KMAC-50 16 20 70 25 52 102 22.7 3.56 580
    KMAC-63 16 20 70 30 52 102 22.7 4.27 696
    KMAC-80 16 20 70 40 52 102 22.7 5.70 928
    KMAC-100 16 20 70 45 52 102 22.7 6.41 1043
    KMAC-125 19 25 83 35 63 121 27.2 5.92 1157
    KMAC-160 19 25 83 40 63 121 27.2 6.76 1322
    KMAC-200 19 25 83 50 63 121 27.2 8.46 1653
    KMAC-250 19 25 90 60 63 128 28.6 10.15 2085
    KMAC-320 22 35 85 50 79 129 30.6 9.79 2148
    KMAC-400 22 35 85 65 79 129 30.6 12.73 2793
    KMAC-500 25 40 85 55 90 135 32.5 12.24 2856
    KMAC-630 25 40 85 70 90 135 32.5 15.58 3635
    KMAC-800A 25 40 85 85 90 135 32.5 18.91 4414
    KMAC-800B 30 40 95 85 100 155 36.1 22.70 5879
    KMAC-1000 33 40 105 85 106 171 39.0 24.96 6994


    Other specifications are available according to customer’s requirements.



    Our Service:



    1. Nanocrystalline cores for common mode chokes

    Audio Toroidal Transformer

    2. Amorphous and nanocrystalline c cores

    Audio Toroidal Transformer

    3. Custom cores and magnetic components

    Audio Toroidal Transformer



    More information please visit: www.kingmagnetics.com



    FAQ:



    1. Are you manufacturer of amorphous and nanocrystalline cores?

        Yes, we are manufacturer and we provide high quality products.

    2. Can you custom made cores?

        Yes, please send us your drawing and specification.

    3. MOQ

        Our MOQ is USD1000, small order is welcome.

    4. Lead time

        Mostly lead time begins from 15 days, depends on order quantity.

    5. How to start order?

        Just fill you requirement message and click "[send]" below, we will contact you in 24Hours.

        Or email to us core(at)kingmagnetics.com
