Home ProductsNanocrystalline Transformer Core

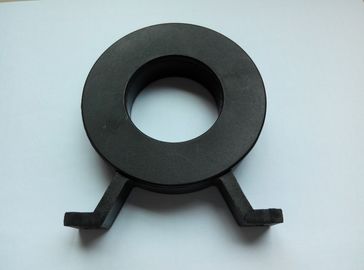

Nanocrystalline Core for Transformer

Nanocrystalline Core for Transformer

Nanocrystalline Core for Transformer

Product Details:

Place of Origin: China
Brand Name: King Magnetics
Certification: RoHS, UL94-V0(Plastic Case)
Model Number: 80*50*25

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: -
Packaging Details: Paper box
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 30000 pcs
Contact Now
Detailed Product Description

High frequency 20KHz Nanocrystalline cores for Transformers of Inverted Welding Machines


Core dimensions and Power capacity:

70*40*25      3-5KW
80*50*25      4-6KW
100*60*20     6-8KW
120*70*20     7-12KW
120*70*30     12-15KW
130*80*40     15-20KW
130*80*50     20-25KW


Applications

>> Inverter welding machines
>> Electrolytic plating power supplies
>> High Power Laser power supplies
>> Communication, high-speed railway power supplies
>> High frequency heating systems
>> High frequency and high power switched mode power supply


Features

>> High saturation flux density - you can reduce volume of transformers vs tranditional Ferrite
>> High permeability - improve efficiency,lower exciting power and reduce copper loss
>> Low coercivity and Low core loss - low temperature rise
>> Excellent thermal stability - working temperature of -40 - 130℃

Please visit: www.nanophous.com


Properties Nanophous cores Ferrite cores
Saturation Flux density(T) 1.25 0.5
Remanence (T) (20KHz) <0.2 0.2
Core loss (20KHz/0.2T) (W/Kg)  <4 7.5
Core loss (20KHz/0.5T) (W/Kg) <40 can not use
Core loss (50KHz/0.3T) (W/Kg) <50 can not use
Permeability (20KHz) >20,000 2000
Coercivity (A/m) <2.0 6
Saturation magnetostriction(*10^-6) <2 4
Resistivity (μΩ.cm) 90 10^6
Curie temperature() 560 <200
Stacking factor >0.75 n/a
