Nanocrystalline Core 3-Phase for EMC Filter Common Mode Choke T65-40-30 high-perm core

Product Details:
Place of Origin: China
Brand Name: King Magnetics
Certification: RoHS, UL94-V0(Plastic Case)
Model Number: T65-40-30
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: -
Packaging Details: Paper box
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 60000 pcs

Product Description

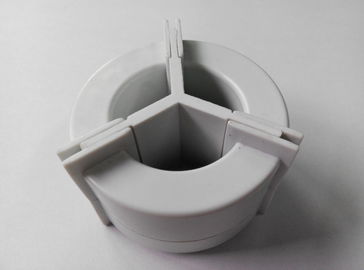

3- Phase disign, with seperated board, Nanocrystalline core

(sometimes they call amorphous core)



Features:



High permeability  Nanocrystalline Core ui 60000 Min @ 10Khz

Used best nanocrystalline ultra thin ribbon of 25um

Best high frequency characterics



for EMI Filter and Common Mode Choke



Bare core dimensions: OD: 65mm   ID: 40mm   HT: 30mm

Finished core dimensions (approximately): OD: 55.6mm ID: 32.6mm HT:28.6mm



AL Value @ 10KHz, 0.25V : 115uH Min

you can also specified other AL value, we can custom made.



Working temperature: -40℃ - 120℃



RoHS Compliance, UL94-V0 for plastic case.



It is the best core for EMI solusions.
