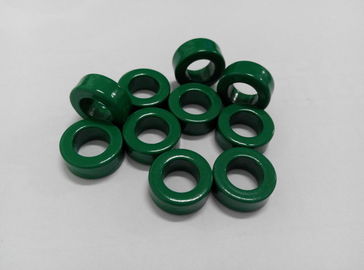

High Permeability Toroidal Nanocrystalline Coating Core

High Permeability Toroidal Nanocrystalline Coating Core supplier
High Permeability Toroidal Nanocrystalline Coating Core supplier

High Permeability Toroidal Nanocrystalline Coating Core

Product Details:
Place of Origin: China
Brand Name: King Magnetics
Certification: RoHS, UL94-V0(Plastic Case)
Model Number: Custom made
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: -
Packaging Details: Paper box
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 30000 pcs
Contact Now

Product Description

High Permeability Toroidal Nanocrystalline Coating Core

Features

Material: Fe-based Nanocrystalline core
Saturation flux density induction: 1.25T
Curie temperature(℃): 560
High Permeability: >20000
Stacking factor: >0.75
Saturation magnetostriction(*10^-6): <2
Resistivity (μΩ.cm): 90
Ribbon thickness: 25μm
Core dimension: Custom made, subject to customer's drawing or specification


Applications

>> EMI filter common mode choke
>> Frequency converter
>> Inverter welding machines
>> Electrolytic plating power supplies
>> High Power Laser power supplies
>> Communication, high-speed railway power supplies
>> High frequency heating systems
>> High frequency and high power switched mode power supply
