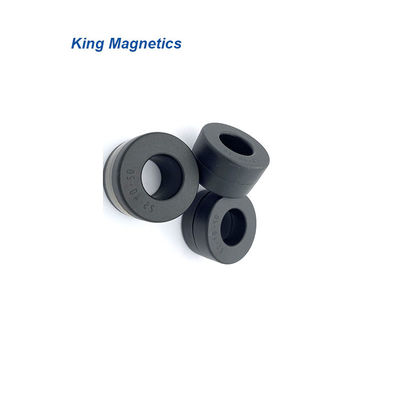

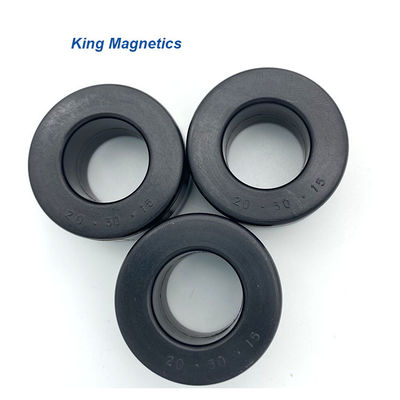

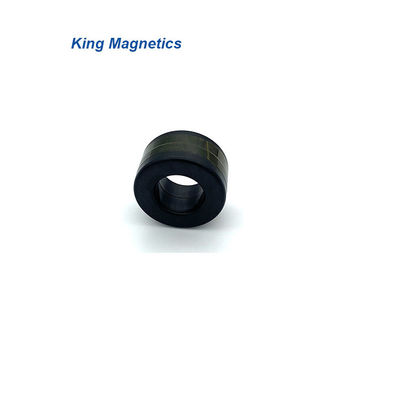

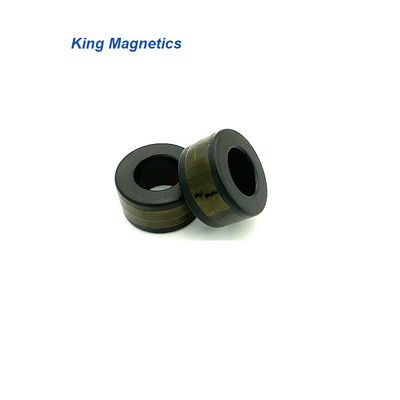

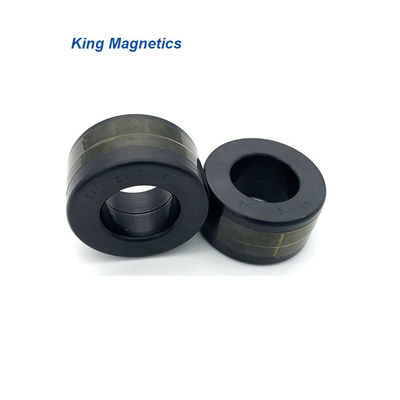

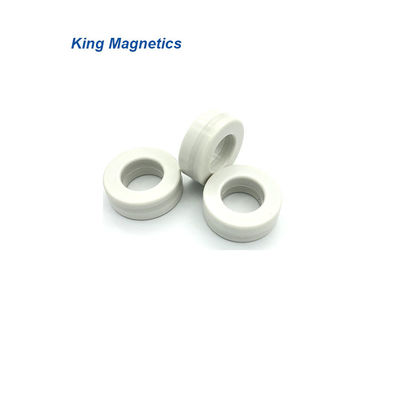

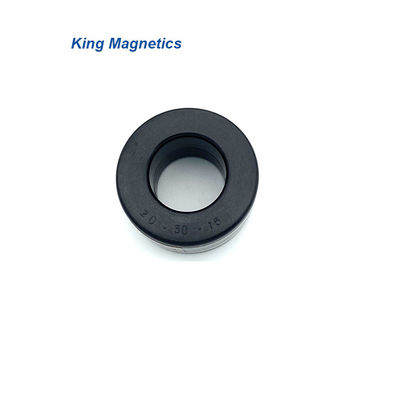

Oval shape nanocrystalline core
Contact Person : Wang
Phone Number : +86-158-1980-9198
| Minimum Order Quantity : | 5pcs | Price : | USD2.33~2.37Piece/Pieces |
|---|---|---|---|
| Packaging Details : | Carton | Delivery Time : | 15 Work days |
| Payment Terms : | T/T | Supply Ability : | 10000/PCS/Per mouth |
| Place of Origin: | Zhuhai Guangdong China | Brand Name: | King Magnetics |
|---|---|---|---|
| Certification: | IOS:9001 | Model Number: | KMN402515 |
|
Detail Information |
|||
| Brand: | King Magnetics | Material: | Nanocrytaslline Core |
|---|---|---|---|
| Application: | EMI Filter | Type: | Toroidal Nanocrystalline Core |
| Trade Term: | EXW | Certifications: | RoHs |
| Quality: | Factory Supplier | Usage: | Common Mode Choke Inductor |
| Shipping Way: | UPS Etc | Package: | Carton |
Product Description
| Name | Nanocrystalline Core for EMI Filter Common Mode Choke |
| Material | Fe-based nanocrystalline |
| Type | Toroidal nanocrystalline core |
| Ribbon | Metglas, finemet, 1k107, nanoperm |
| Shape | Toroidal soft magnetic core |
| Usage | Common mode choke inductor |
| Application | EMI filter |
| Certifications | ROHS |
| Quality | Factory supplier |
| Color | Black |
| Product Keywords | amorphous core manufacturers,1k107 toroid core |
Features:
Material: Fe-based Nanocrystalline core
Saturation flux density induction: 1.25T
Permeability @ 10KHz: > 50000
Permeability @ 100KHz: >10500
Curie temperature(℃): 560
Stacking factor: 0.78
Saturation magnetostriction(*10^-6):<2
Resistivity (μΩ.cm): 115
Ribbon thickness: 25μm
Core shapes: Troidal core
Applications:
>> EMC Filter
>> Switched mode power supply
>> Computer power supply
>> Communication and network power supply
>> Laser and X-ray power supply
>> Welding equipment and Electrical plating power supply
>> Solar energy equipment and Wind power generator
>> Household electrical appliance
>> Uninterruptable power supply (UPS)
>> Frequency converter
>> Inducted heating equipment
>> high-speed railway power supplies
>> VFD Inverter Drive Motor Systems
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
