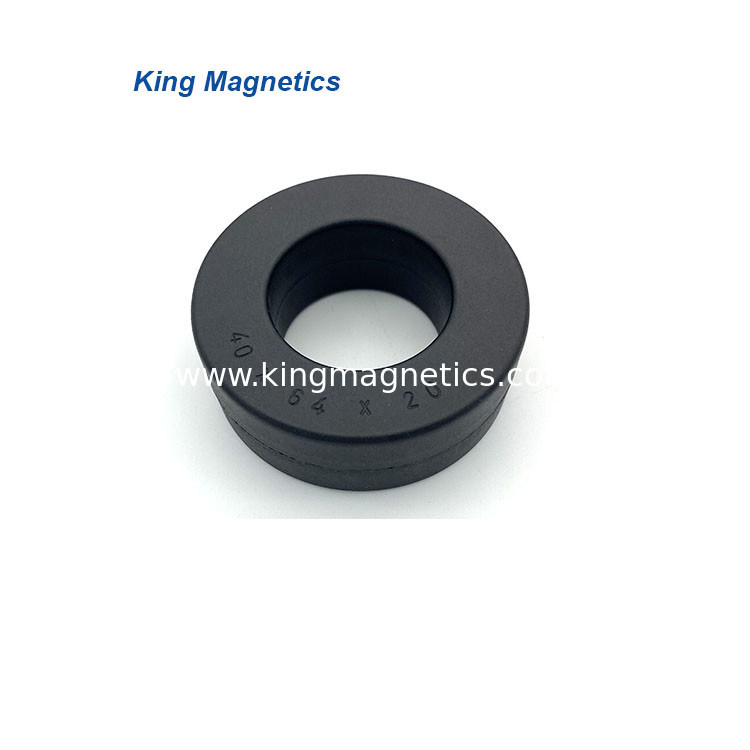

KMN644020 Finemet nanocrystalline core for diametrically magnetized hollow cylinder

Minimum Order Quantity : 5pcs Price : USD6.77~9.78Piece/Pieces
Packaging Details : Carton Delivery Time : 21 Work days
Payment Terms : T/T Supply Ability : 10000/PCS/Per mouth
Place of Origin: Zhuhai Guangdong China Brand Name: King Magnetics
Certification: IOS:9001 Model Number: KMN644020

Detail Information

Material: Nanocrytsalline Model: KMN644020,
Shape: Finemet Ring Core Finished: UL 130 Degree Plastic Case
Name: AL 50uH Tape Wound 220 Vac Emi Filter Induction Coil Nano Crystal Core Application: EMI Filter Common Mode Choke
Package: Carton Color: Black

Product Description

nanocrystalline c core 750

AL 50uH tape wound 220 vac emi filter induction coil nano crystal core



Product Description

KMN644020-1





Nanocrystalline cores feature very high permeability over low frequency to high frequency up to 30Mhz. They are very suitable for common mode choke to be used as EMC filter to compress conducted common mode noise. Compared to traditional ferrite core, nanocrystalline core has a lot of advantages as high inductance, good filter effective, small size and volume, less turns of copper wire, lower power consumption and high efficiency.



Features



Material: Fe-based Nanocrystalline core
Saturation flux density induction: 1.25T
Permeability @ 10KHz: > 50000
Permeability @ 100KHz: >10500
Curie temperature(℃): 560
Stacking factor: 0.78
Saturation magnetostriction(*10^-6): <2
Resistivity (μΩ.cm): 115
Ribbon thickness: 25μm
Core shapes: Troidal core

Applications



>> EMC Filter
>> Switched mode power supply
>> Computer power supply
>> Communication and network power supply
>> Laser and X-ray power supply
>> Welding equipment and Electrical plating power supply
>> Solar energy equipment and Wind power generator
>> Household electrical appliance
>> Uninterruptable power supply (UPS)
>> Frequency converter
>> Inducted heating equipment
>> high-speed railway power supplies

>> VFD Inverter Drive Motor Systems





Standard Cores




Part No. Core dimensions Case dimensions Effictive
cross
section
Mean
path
length
Weight AL Minimum Value
  od id h OD ID H AFe lFe mFe 10kHz 100kHz
  mm mm mm mm mm mm cm2 cm g μH μH
KMN986545 9.8 6.5 4.5 11.3 5 6.1 0.06 2.6 1.1 14.2 3.0
KMN120805 12 8 4.5 14.5 6.3 6.9 0.07 3.1 1.6 15.6 3.7
KMN161008 16 10 8 17.8 8.4 9.9 0.19 4.1 5.5 34.6 6.9
KMN191510 19 15 10 21.2 13.5 12.3 0.16 5.3 6.0 22.0 4.4
KMN201208 20 12 8 21.7 10.8 9.9 0.25 5.0 9.1 37.4 7.5
KMN211308E * 21.3 13.6 8 22 13 8.8 0.24 5.5 9.5 33.0 6.6
KMN252010 25 20 10 28 17.2 13.2 0.20 7.1 10 20.8 4.2
KMN261610 26 16 10 28.3 14 12.8 0.39 6.6 19 44.6 8.9
KMN302010 30 20 10 33.2 17.8 13.3 0.39 7.9 22 37.4 7.5
KMN302015 30 20 15 33.6 17.8 17.8 0.59 7.9 33 56.2 11.2
KMN322010 32 20 10 34.4 18.1 13 0.47 8.2 28 43.2 8.6
KMN322015 32 20 15 34.6 17.9 18.2 0.70 8.2 42 64.8 13.0
KMN402515 40 25 15 44.4 22 18.8 0.88 10.2 65 64.8 13.0
KMN403215 40 32 15 44.9 28.8 18.8 0.47 11.3 38 31.2 6.2

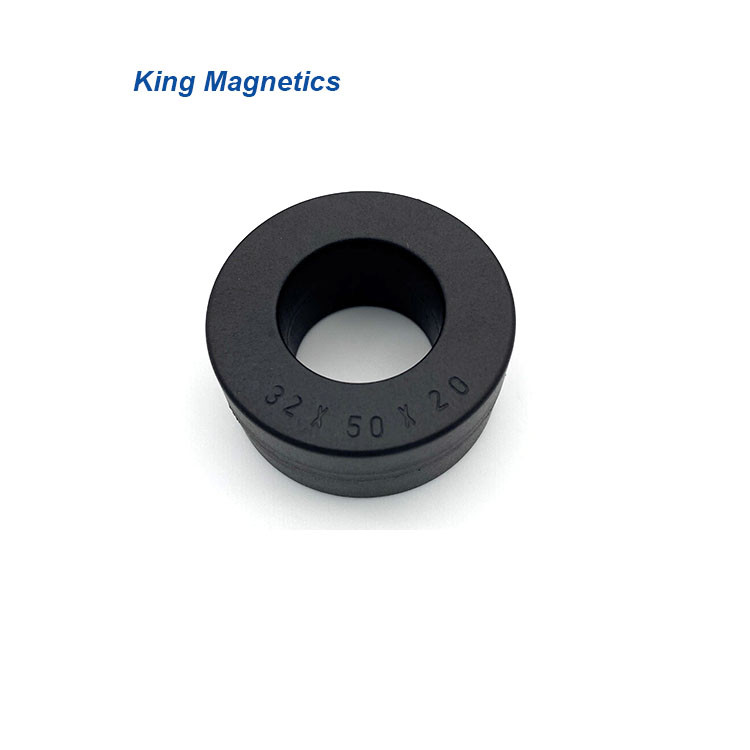

KMN503220 50 32 20 53.8 28.5 24 1.40 12.9 131 68.5 16.4
KMN504020 50 40 20 53.6 37.1 23 0.78 14.1 80 34.7 8.3
KMN644025 64 40 25 67.4 37 29.3 2.34 16.3 277 90.0 21.6
KMN805025 80 50 25 83.5 47.2 28.8 2.93 20.4 433 90.0 21.6
KMN1008020 100 80 20 105 75 25 1.56 28.3 320 34.7 8.3
KMN1027625 102 76 25 107 71 30 2.54 27.9 514 57.0 13.7
KMN1309030 130 90 30 135 85 35 4.68 34.5 1172 85.1 20.4
KMN16013025 160 130 25 165 125 30 2.93 45.5 966 40.3 9.7
KMN17012025 170 120 25 175 115 30 4.88 45.5 1609 67.2 16.1


These cores are our standard products, we can also design and produce high performance cores according to customer’s requirements, including sizes, inductance and applications. We can help customers to select the best performance cores.

* Epoxy coated.



Our Services

1. Nanocrystalline cores for common mode chokes

nanocrystalline cores for common mode choke.jpg

2. Amorphous and nanocrystalline c cores

amorphous and nanocrystalline c core.jpg

3. Custom cores and magnetic components

custom cores and magnetic components.jpg
