Epoxy coating amorphous and nanocrystalline cores for SMPS as EMC filter choke inductor

Packaging Details : Paper box Delivery Time : 15 days
Payment Terms : T/T
Place of Origin: China Brand Name: King Magnetics
Model Number: N1210

Product Description

Nanocystalline Core from King Magnetics

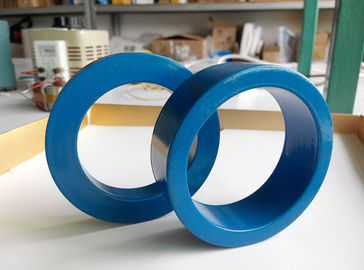

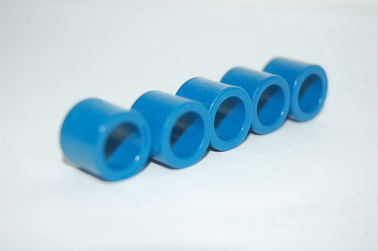

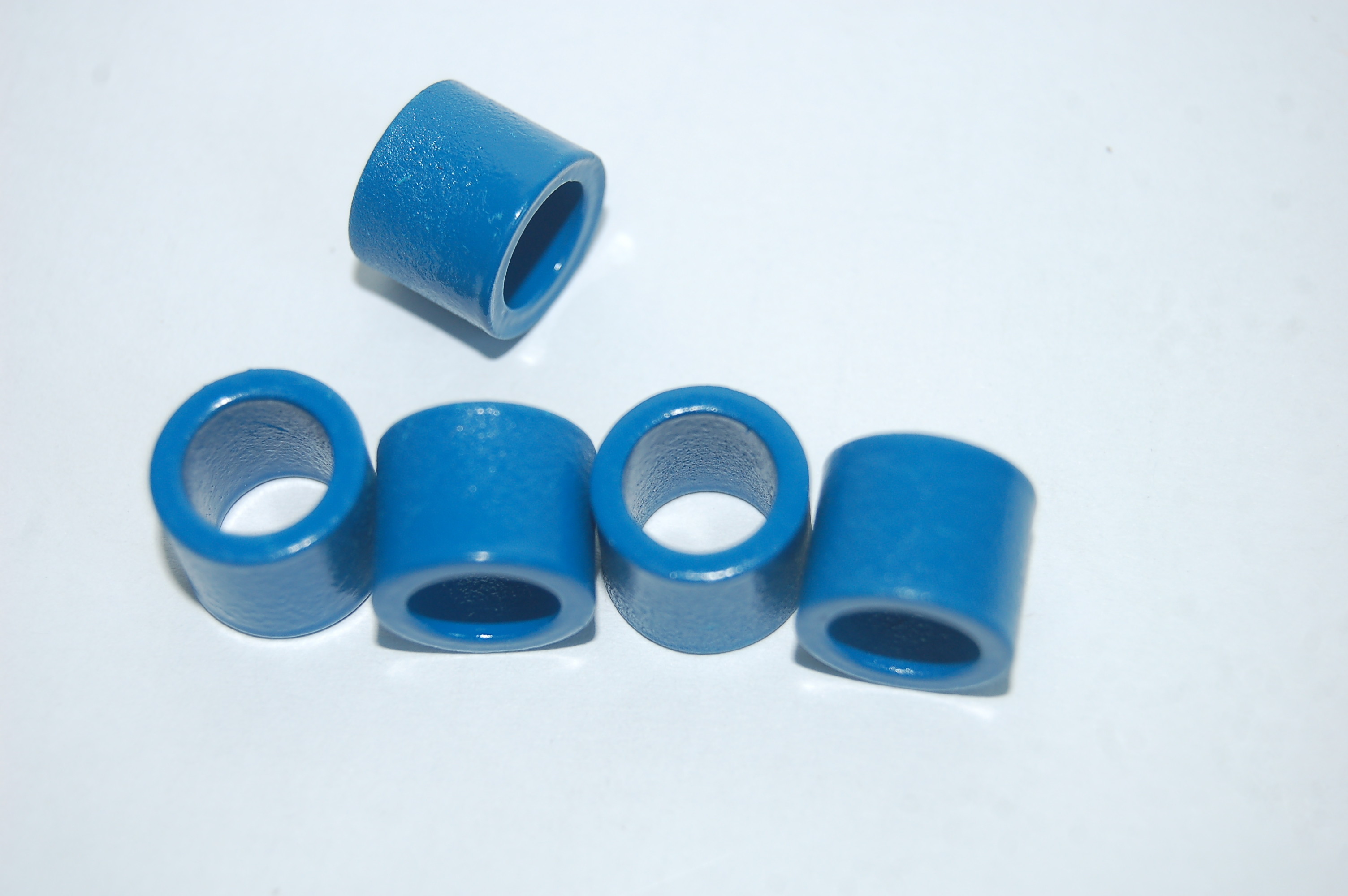

Epoxy coating amorphous and nanocrystalline cores feature small in volume and high stability. We can design the cores according to customer’s requirement, both of size and performance. They are suitable for all types and applications, especially suitable for cores for common mode chokes, power transformers and current transformers.



Nanocrystalline Toroidal Cores for Common Mode Chokes feature High permeability,High indutance,easy help you treat EMI problems.


Fe-based nanocrystalline core features very high permeability, high saturation flux density, low loss makes common mode choke has large inductance with only a few turns, low copper loss and small size.


We are professional producer of amorphous core and nanocrystalline core.



Part No. Core dimension Case dimension Eff. cross area Mean path length AL(μH)
(mm) (mm) (cm2) (cm) 10KHz,0.25V
od id h OD ID H Ae Lm AL(Min)
N0903 9 5 3.2 9.5 4.5 3.8 0.05 2.2 11.5
N1003 10 7 3.2 10.5 6.5 3.8 0.037 2.67 7
N1210 12 8.7 10 12.6 8.1 10.6 0.129 3.25 20
N1405 14 9 4.5 14.5 8.5 5.1 0.088 3.61 12
N2108 21.3 13.5 8 22.1 12.8 9 0.243 5.46 22
N4304 43 35 4 43.6 34.4 4.6 0.125 12.25 5



More details please visit: www.kingmagnetics.com
