Co-based amorphous ribbon and cores

Name: Co-based amorphous ribbon and cores
Brand: Zhuhai King Magnetics Technology Co., Ltd.
SKU: co-based amorphous ribbon
Availability: InStock

Brand Name:	King Magnetics
Model Number:	co-based amorphous ribbon
Price:	-
Delivery Time:	15 days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

Paper box

Product Description

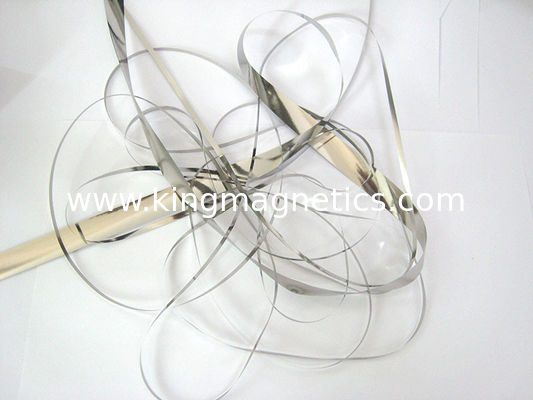

Co-based Amorphous ribbon and cores

Co-based amorphous material has extremely high permeability, extremely low coercivity, very low core loss. But Co-based material is expensive, only used in special area like magnetic amplifier of sever power supply, high precision transformer, high sensibility sensor.

Co-based amorphous ribbon and cores are custom-made. We can ribbon and cores according to customer's specification and requirments.

Features

Material: Co-based amorphous core

Saturation flux density induction: 0.57T

Curie temperature(℃): 220

Stacking factor: >0.75

Saturation magnetostriction(*10^-6): <2

Resistivity (μΩ.cm): 130

Ribbon thickness: 25μm

Core shape: troidal core, bar core

Applications

>> Magnetic amplifier

>> Driver transformer

>> High precision transfomer

>> Sensor

>> High frequency transformer

More details please visit www.kingmagnetics.com
